Product Description
F E A T U R E S :
• Rugged 2 cylinder cast iron compressor
• “V” design minimizes vibration, improves cooling and extends life
• Individual and removable cylinders for smoother and cooler operation
• No magnetic motor starter required
• Heavy duty pressure switch has on/off control
• Thermally protected 6.5 HP 208/230 volt electric motor
• 0 - 200 PSI pressure gauge
• 60 gallon ASME registered tank, 135 PSIG rating
• Easy view oil sight gauge
• High efficiency reed valves for maximum performance
• Efficient heat removal from pulley-fan for cooler running and longer life
• Sturdy belt guard
Assembled in USA

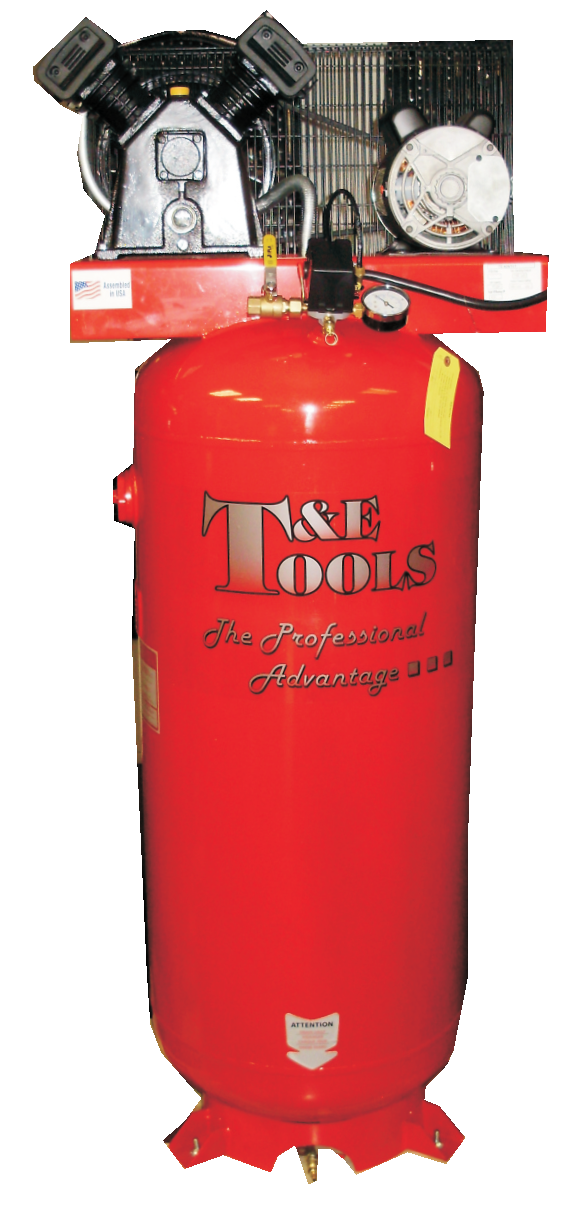

STOCK #: JA660
PEAK HP: 6.5
CFM@ 90PSI: 11.2
AIR RECEIVER RATED PSI: 135
AIR RECEIVER CAPACITY: 60 GALLON
DIMENSIONS: 27"(L) x 20"(W) x 65"(H)
WEIGHT: 260 LBS.
